Working pressure – 10 bar (1,0 MPa)
Burst pressure – 40 bar (4,0 MPa)
Class C – resistant to oil
Safety factor 4:1

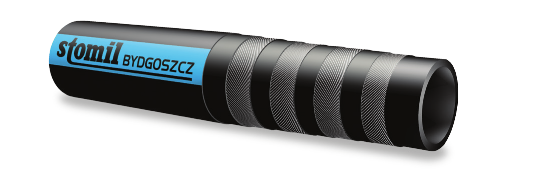

This reliable hose is widely used in environments with high concentration of oil substances. It is designed to supply compressed air to pneumatic tools as well as for water and light chemicals in industry and agriculture.
It is characterized by a high safety factor 4:1.
This hose is resistant to abrasion, weathering, ozone and heat.
On request, we provide additional spiral steel wrap for protection against excessive abrasion and deformation, such as kinking or crushing. This option applies to hoses with nominal diameters larger than DN 12.
From -30°C to +80°C
Briefly to +100°C
On request we can supply hose for use in wider temperature range from -40°C and up to +100°C.
According to EN ISO 2398 (TYPE 1).
Black synthetic rubber resistant to oil.
Interlayers made of textile cord or synthetic threads depending on diameter.
Abrasion, oil, weather conditions and ozone resistant black synthetic rubber.
Hoses up to DN 12,5 in diameter have smooth surface. Larger diameters have cloth impression.
Method of marking
Diameters with smooth surface are marked with white print. Larger diameters with cloth impression are marked with a light blue tape.
